Overview of Siemens 6ES7151‑1BA02‑0AB0
Siemens 6ES7151‑1BA02‑0AB0 is a SIMATIC DP Interface Module IM151-1 High Feature for ET200S, designed to connect distributed I/O modules to a Profibus DP network or PLC communication backbone. It ensures reliable communication and data transfer between the ET200S modules and the central PLC CPU.
This module supports a transmission rate up to 12 Mbit/s, manages up to 244 bytes of input and 244 bytes of output data, and allows up to 63 ET200S modules to be connected in one station. Isochronous mode ensures synchronized bus operation, and the module includes a 9‑pin D‑Sub bus connection with termination for secure and stable communication.
Key Features
- SIMATIC DP Interface Module IM151-1 High Feature for ET200S
- Transmission rate up to 12 Mbit/s
- Supports up to 244 bytes input/output data
- Connect up to 63 ET200S modules per station
- Isochronous mode for synchronized operation
- Bus connection via 9‑pin D‑Sub with termination
- Essential for scalable and modular ET200S PLC systems
Applications
Used in industrial automation, PLC control panels, production lines, material handling systems, and distributed automation stations. Ideal for machine automation and system integrators requiring reliable high-speed communication with multiple I/O modules.
Technical Specifications
- Brand: Siemens
- Model: 6ES7151‑1BA02‑0AB0
- Module Type: DP Interface Module (High Feature)
- System: SIMATIC ET200S
- Transmission Rate: Up to 12 Mbit/s
- I/O Data: 244 bytes input/output
- Max Modules: 63
- Bus Connection: 9‑pin D‑Sub with termination
- Isochronous Mode: Supported
Why Choose This Module?
Siemens 6ES7151‑1BA02‑0AB0 offers robust performance for distributed I/O systems, enabling high-speed and synchronized communication in modular ET200S setups. It is a must-have for advanced industrial automation requiring reliable Profibus DP connectivity.
Related Products
- 6ES7138-6AA01-0BA0 ET 200SP Counter Module

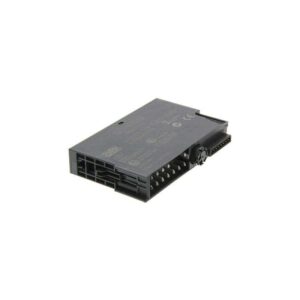

- 6ES7134-4GB00-0AB0 Analog Input Module
